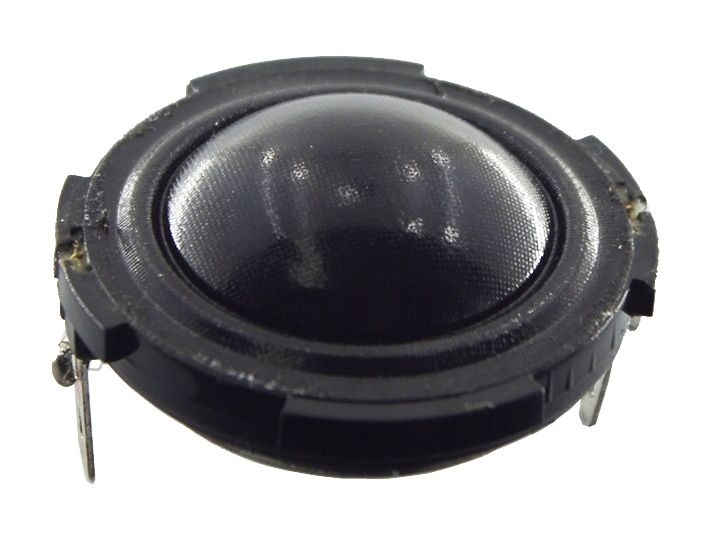

This OC family tweeter features a 16 mm 4 ohm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the neodymium magnet motor, providing enhanced cooling of the voice coil. The tweeters butterfly comes with 2 mounting holes and with 2 pin terminals. The product is designed to fit snugly into small applications, while providing excellent dynamic sound quality.

FEATURES

• Neodymium Motor
• Silk Diaphragm
• Silk Surround
• Ferrite Magnet with Heatsink

SPECS

• OC25SC65-04
• Transducer Size 25 mm
• Impedance 4 Ω
• Fs = 1400 Hz
• Sensitivity @ 1W/1m 89.3 dB
• Rated Noise Power 80 Watt
• Frequency Range 2000 - 20000 Hz
• Net Weight 0.049 kg
